Scan-speak D2904/9800.00

Scan-speak Revelator
D2904/9800.00
Scan-speak D2904/9800.00
Sales price 180,00 €
Sales price without tax 148,76 €
Discount
Tax amount 31,24 €
Scan-Speak Revelator
Description

The Revelator series has for years been celebrated for producing the best sounding electro dynamic transducers in the world. Since ScanSpeak was founded in 1970, the audio engineers and R&D experts working on the line have been on a quest to create drivers that reveal all the sound in recordings, hiding nothing from the listener. This quest has resulted in several revolutionary inventions that remove distortion in the magnet systems and in the moving parts of the speaker. The philosophy is that the sound has to be very dynamic, giving a perfect transient response and providing tonal balance. In the Revelator tweeters, additional enhancements have been made to reduce distortion and power compression, and to optimize airflow in the chambers, producing several unique tweeter designs.

Driver Highlights: 1" aluminium dome, SD-2 motor, low compression design, non resonant chamber



Specs

Electrical Data



  • Nominal Impedance
 Zn 4 ohm
  • DC Resistance
 Re 3.5 ohm
  • Voice Coil Inductance
 0.01 mH

TS Parameters

  • Resonance Frequency
 Fs 500 Hz
  • Force Factor
 Bl 2.8 Tm
  • Moving Mass
 Mms 0.5 g
  • Effective Piston Area
 Sd 8.5 cm^2
  • Sensitivity
 2.83V/1m 90 dB

Power Handling

  • 100h RMS noise test
 IEC 160 W

Voice Coil and Magnet Parameters

  • Voice Coil Diameter
 28 mm
  • Linear Excursion +/-
 0.1 mm
  • Max mech. excursion +/-

1.5 mm

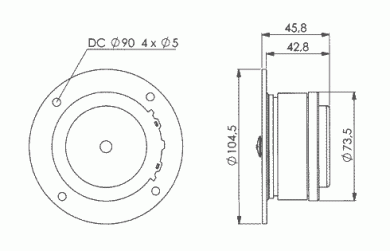

Drawing Dimensions

  • Outside Diameter
 OD 104.5 mm
  • Magnet Diameter
 MD 73.5 mm
  • Interior Depth
 ID 42.8 mm
  • Hole Diameter
 HD 5 mm
  • Screw Circle Diameter
 SD 90 mm
Units in box: 65537
