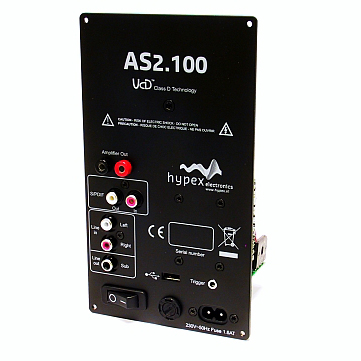

AS2.100 Digital

The AS2.100 is a plate amp for use in powered speaker systems.
AS2.100 Digital
With shipment TNT track&trace for 7,75 €
Sales price 283,14 €
Sales price without tax 234,00 €
Discount
Tax amount 49,14 €
Description

The AS2.100 is a plate amp for use in powered speaker systems. Being an active speaker controller, the AS2.100 forms the basis of, for instance, a powerful active two-way monitor. In stereo mode one AS2.100 will power an active master / passive slave pair. The AS2.100 Digital is a AS2.100 including the optional digital add-on board.

  • Specifications

  • GENERAL FEATURES:
  • Fully controlled by PC software (included)
  • Cross-over settings fully customisable (real-time)
  • UcD100OEM (2x) powered
  • Stereo analogue input
  • S/PDIF input and output
  • Sampling rates up to 192kHz
  • USB Audio
  • Infrared remote control (optional)
  • Automatic input scanning
  • compact design
  • Fully user customised filtering
  • Button panel controlled
  • Remote controlled
  • Filtered sub out
  • Link connection master / slave (only with two modules)
  • Low signal to noice (-100dB)



  • APPLICATIONS:
  • When one module is used:
  • - Stereo passive filtered system
  • - Bridged mode for single subwoofer (max 140Watt @ 4 Ohms)
  • - Mono/mid 2-way setup (tweeter + sub)



  • When two modules are used:
  • - 2-way active filtered stereo system
  • - 2 channel system, both modules in bridge mode for more power
  • - 3-way active filtered in combination with an active subwoofer (filtered sub out on AS2.100)



All setups are possible with analogue and the digital audio inputs SPDIF and USB.


  • TECHNICAL DATA:
  • Supply voltage: 230Volt AC/50Hz +/-10%
  • Output power LS1: 100W @ 4Ohms
  • Output power LS2: 100W @ 4Ohms



  • MECHANICAL DATA:
  • Dimentions: 115mm x 200mm x 60mm (W x H x D)
  • Weight: 1.6Kg
