SMPS1200A180

SMPS1200A180
SMPS1200A180
With shipment TNT track&trace for 7,75 €
Sales price 217,80 €
Sales price without tax 180,00 €
Discount
Tax amount 37,80 €
Description

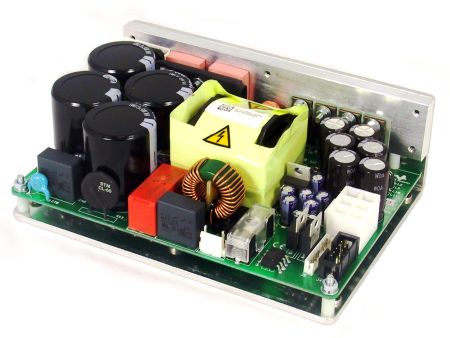

SMPS1200A180 The SMPS1200 Power Supply is a 1200W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD™ amplifier modules. This model is made for the UcD180 modules.

No cables included.


Specifications

APPLICATIONS:
- Supply for single or multiple amplifiers of the UcD™ range
- Active loudspeakers

HIGHLIGHTS:
- High efficiency
- Selectablel input voltage range
- Extremely small form factor
- Low EMIl

GENERAL FEATURES:
- Advanced over current protection
- Remote controlled operation
- Low weight
- Compact
- Fits in 1HE (additional insulation required)
- Fixed output voltage (3 versions available)

ELECTRICAL FEATURES:
- High Line Input Voltage: 190-250Vac
- Low Line Input Voltage: 95-130Vac
- Output Voltage: 2x46Vdc
- Max. Output power: 1500W
- Max. Output power: 1200W @20Hz
- Switching Frequency: 100kHz

MECHANICAL FEATURES:
- Weight: 750g
- Dimensions: 165mm x 105mm x 55mm
