Read more ...Vifa XT25BG-60/04

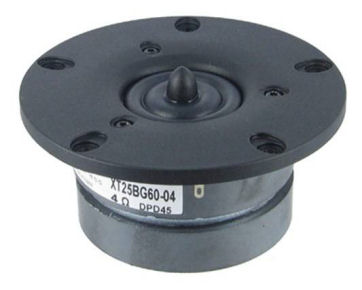

Vifa XT25BG-60/04
Description
T
The goal for this tweeter series was to create a transducer that has a frequency response that is flat to above 20K, and where the distortion is far lower than normal and more friendly to the ear. The tweeters represent a unique approach to tweeter design that has resulted in unrivaled performance, as well as in several patents (Dual Ring Radiator diaphragm, wave-guide center plug).
- Driver Highlights:
- Dual Ring Radiator diaphragm (Patent)
- Waveguide
- center plug (Patent)
- copper-clad aluwire
Specs
Electrical Data
|
Zn 4 ohm |
|
Zmin - Ohm |
|
Zmax 10.5 Ohm |
|
Re 2,9 ohm |
|
- mH |
TS Parameters
|
Fs 630 Hz |
|
Qms - |
|
Qes - |
|
Qts - |
|
Bl 2.8 Tm |
|
Rms 0,38 Kg/s |
|
Mms 0.3 g |
|
Cms 0,21 mm/N |
|
D - cm |
|
Sd 5,4 cm^2 |
|
2.83V/1m 92,4 dB |
|
Vas - liter |
|
0,8 |
Power Handling
|
IEC |
Voice Coil and Magnet Parameters
|
26 mm |
|
2,2 mm |
|
2 |
|
2,5 mm |
Frequency
Mechanical Dimensions
Drawing Dimensions
|
OD 33,4 mm |
|
MD - mm |
|
ID 17,08 mm |
|
HD - mm |
|
SD - mm |
Units in box: 1
